Fire Alarm Panel Replacement in NJ (2026): Costs, Permits and When an Old Panel Must Go
Cost guides we checked in October 2026 put a small like-for-like panel swap at about $3,000 to $9,000 installed and a conventional-to-addressable upgrade at $8,000 to $35,000. In New Jersey the job also needs a construction permit, a licensed contractor and an inspection.
Our commercial fire alarm systems service

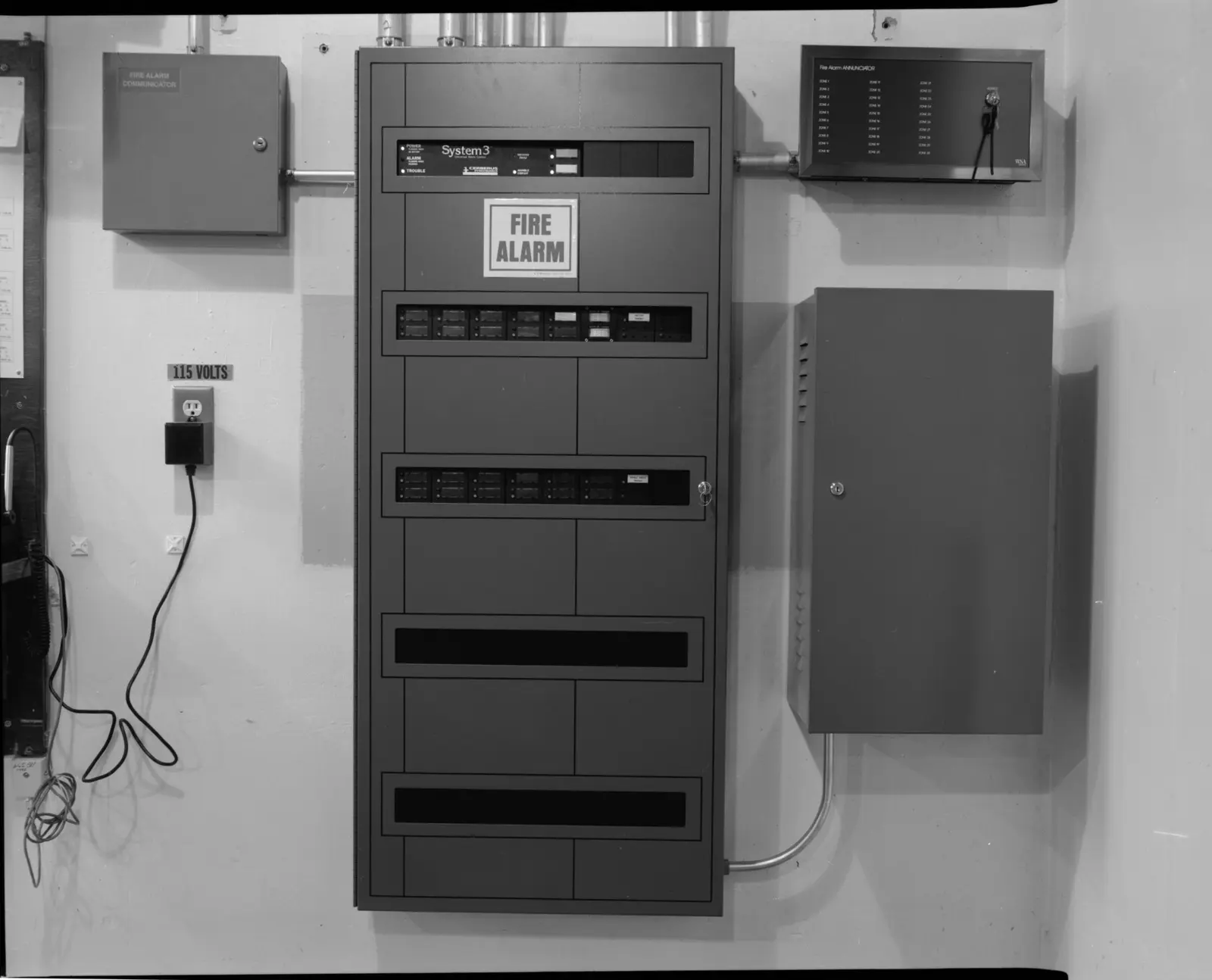

An older zoned fire alarm panel with its communicator in a separate box, the kind of set-up this guide is about. Photo: Historic American Engineering Record, Library of Congress via Wikimedia Commons, public domain.
The short answer: what a fire alarm panel replacement costs in 2026
- Like-for-like swap, small building: $3,000 to $6,000 installed at Majors Fire & Security, or $3,500 to $9,000 for 15 to 40 reused devices at Security and Life Integrations.
- Conventional to addressable: $8,000 to $15,000 for a small building (Majors) and $14,000 to $35,000 for a mid-size one (Vector Fire).
- Large addressable replacement: $25,000 to $60,000 or more (Majors).
- The panel alone: $1,500 to $5,000 conventional and $3,000 to $15,000 or more addressable (Majors).
- In New Jersey: replacing the control panel is not ordinary maintenance, so it needs a permit (N.J.A.C. 5:23-2.7).
These are typical market ranges published by companies in Florida, North Carolina and Texas, opened October 19, 2026. None of them is a Security Dynamics price; Security Dynamics quotes each building on its own.
This guide is for New Jersey property managers, building owners, condo and HOA boards and facility leads whose fire alarm panel failed an inspection, keeps going into trouble, or can no longer get parts. It covers what other companies publish for a replacement, what the panel alone costs, how to decide between repairing, swapping and upgrading, what New Jersey’s construction and fire codes require, and what gets tested before the fire official signs off.
Published Fire Alarm Panel Replacement Costs, Checked October 2026
Replacements are usually quoted one building at a time, and none of the published replacement ranges we found in October 2026 came from a New Jersey company. The table collects the ranges three companies do publish, with where they work and when each page was dated. The biggest jump in price comes from whether your existing devices can stay.
| Job | Total installed | Panel only | Source |
|---|---|---|---|
| Small conventional-to-conventional swap | $3,000 – $6,000 | $1,500 – $3,000 | Majors Fire & SecuritySarasota, FL · May 26, 2026 |
| Panel-only swap, 15 – 40 devices reused (programming, testing and permit included) | $3,500 – $9,000 | Not split out | Security and Life IntegrationsCharlotte, Raleigh and Greensboro, NC · Undated; opened Oct 19, 2026 |
| Like-for-like swap, existing wiring and devices reused | $5,000 – $15,000 | Not split out | Vector Fire (Houston referral service)Greater Houston, TX · Jun 29, 2026 |
| Small conventional-to-addressable upgrade | $8,000 – $15,000 | $3,000 – $6,000 | Majors Fire & SecuritySarasota, FL · May 26, 2026 |
| Conventional-to-addressable conversion, mid-size building | $14,000 – $35,000 | Not split out | Vector Fire (Houston referral service)Greater Houston, TX · Jun 29, 2026 |
| Mid-size building, 100 – 300 devices | $9,000 – $30,000 | Not split out | Security and Life IntegrationsCharlotte, Raleigh and Greensboro, NC · Undated; opened Oct 19, 2026 |
| Medium addressable panel replacement | $12,000 – $25,000 | $5,000 – $10,000 | Majors Fire & SecuritySarasota, FL · May 26, 2026 |
| Large addressable panel replacement | $25,000 – $60,000+ | $10,000 – $20,000+ | Majors Fire & SecuritySarasota, FL · May 26, 2026 |
| Large or multi-building addressable upgrade | $35,000 – $50,000+ | Not split out | Vector Fire (Houston referral service)Greater Houston, TX · Jun 29, 2026 |
| Multi-building networked system | $60,000 – $150,000+ | $20,000 – $50,000+ | Majors Fire & SecuritySarasota, FL · May 26, 2026 |
Swipe the table sideways to see every column.
Typical market ranges from other companies, not Security Dynamics prices or quotes. Majors says its total installed figures include the panel, programming, rewiring if needed, device compatibility changes, acceptance testing and permitting. None of the three sources works in New Jersey, and New Jersey labor and permit fees can differ.
What the Panel Itself Costs, and What Addressable Adds
The panel is often the smaller part of the bill. Four published price lists for the control panel alone:
| Source | Conventional panel | Addressable panel |
|---|---|---|
| Majors Fire & SecurityMay 26, 2026 | $1,500 – $5,000 | $3,000 – $15,000+ |
| FiretronJul 16, 2025 | From about $1,500 | $2,000 – $10,000 |
| Total Fire ProtectionAug 3, 2026 | $2,500 – $6,000 per control panel, higher for networked or multi-zone panels | |
| Security Alarm CorporationApr 9, 2025 | $1,500 – $5,000 per fire control panel | |
Swipe the table sideways to see every column.
Conventional vs. addressable, in plain terms
A conventional panel groups devices into zones, so an alarm tells you the zone but not the device. An addressable panel gives every device its own address and shows exactly which one went into alarm. Majors suggests conventional for simple buildings under about 10,000 square feet and addressable above that, and lists device prices of $20 to $60 each for conventional against $50 to $150 each for addressable.
Worked example: 40 devices that cannot stay
If a 40-device building converts to addressable and every device has to change, Majors’ $50 to $150 per addressable device adds $2,000 to $6,000 in device hardware alone, before labor, programming and testing.
That is our arithmetic on one source’s per-device range. The surest way to keep a replacement near the low end is a written survey that lists which existing devices are compatible with the proposed panel.
Repair, Swap the Panel, or Upgrade the System: How to Decide
Age is a planning signal, not a verdict. Majors puts the useful life of most fire alarm panels at 15 to 20 years. What decides the job is whether the panel can still be supported and whether the devices around it can stay.
| If this is true | It usually points to | Why |
|---|---|---|
| The panel is still supported, parts are available and it passes its annual inspection | Keep it and repair as needed | Vector Fire: a supportable panel that still passes inspection “may have years of compliant life left.” Security and Life Integrations: “Age alone does not condemn a panel.” |
| The same troubles come back at every annual test | Price a replacement | Security and Life Integrations says that in this pattern “replacement often costs less than repeated repair.” |
| The manufacturer has ended the line and boards or firmware are gone | Replace before it fails | Vector Fire: once support ends, parts and firmware dry up and the system becomes non-maintainable, forcing a full replacement. |
| Your existing detectors and pull stations work with the new panel | Like-for-like swap, devices reused | The cheapest rows in the table above: Majors $3,000 – $6,000, Security and Life Integrations $3,500 – $9,000. |
| The devices are not compatible, or you want device-level (addressable) reporting | Addressable upgrade with device changes | Vector Fire: an addressable conversion adds a base or module at every device plus device-by-device commissioning. |
| The panel still reports over copper phone lines | Ask about a new communicator first | In New Jersey, changing only the communicator’s transmission means is minor work with a 24-hour verification form (N.J.A.C. 5:23-2.17A). Whether your panel can take one depends on the model. |
Swipe the table sideways to see every column.
If the copper line is the real worry, our commercial fire alarm monitoring cost guide covers communicator costs and Verizon’s planned copper retirement in 62 New Jersey wire centers.
New Jersey Rules for Replacing a Fire Alarm Panel
Two codes apply. The Uniform Construction Code (N.J.A.C. 5:23) covers the permit and the inspection of the new work. The State Fire Prevention Code (N.J.A.C. 5:70) covers the building while the system is down and how it is inspected afterward.
A permit is required
Repairing or replacing fire alarm components is ordinary maintenance with no permit, “other than the replacement of a fire alarm control panel” (N.J.A.C. 5:23-2.7(c)4). The Department of Community Affairs says projects outside that list need “at a minimum, a minor work permit or full permit” (Construction Code Communicator, Spring 2018).
A licensed contractor files it
Fire alarm work must be done by a contractor licensed under N.J.S.A. 45:5A-18 et seq., and the license number goes on the permit application. Licensed electrical contractors are exempt (N.J.A.C. 5:23-2.15(b)7).
Fire watch while it is down
When a required system is out of service, the fire department and fire code official must be notified immediately. Where the official finds an imminent hazard, the building is evacuated or “an approved fire watch shall be provided” until the system is back (N.J.A.C. 5:70-3.2, Section 901.7).
Sign-off: a certificate of approval
“A certificate of approval shall be issued for all work that requires a construction permit” (N.J.A.C. 5:23-2.23(m)). Keep it with the new panel’s records.
Communicator-only changes
Changing an existing digital communicator’s phone-line transmission means is minor work. The contractor sends Form F-391 to the fire subcode official within 24 hours confirming all required signals still work (N.J.A.C. 5:23-2.17A).
Old is not automatically deficient
New Jersey inspection reports “list deficiencies based on the edition of the referenced standard in effect at the time of installation, with non-required recommendations listed separately” (N.J.A.C. 5:70-3.2, Section 901.6.3).
New Jersey also points fire alarm inspection, testing and maintenance qualifications to N.J.A.C. 5:74 (N.J.A.C. 5:70-3.2, Section 907.8.5). Whether your job is minor work or needs a full permit, and what the inspector will witness, is decided by your local construction office and fire subcode official.

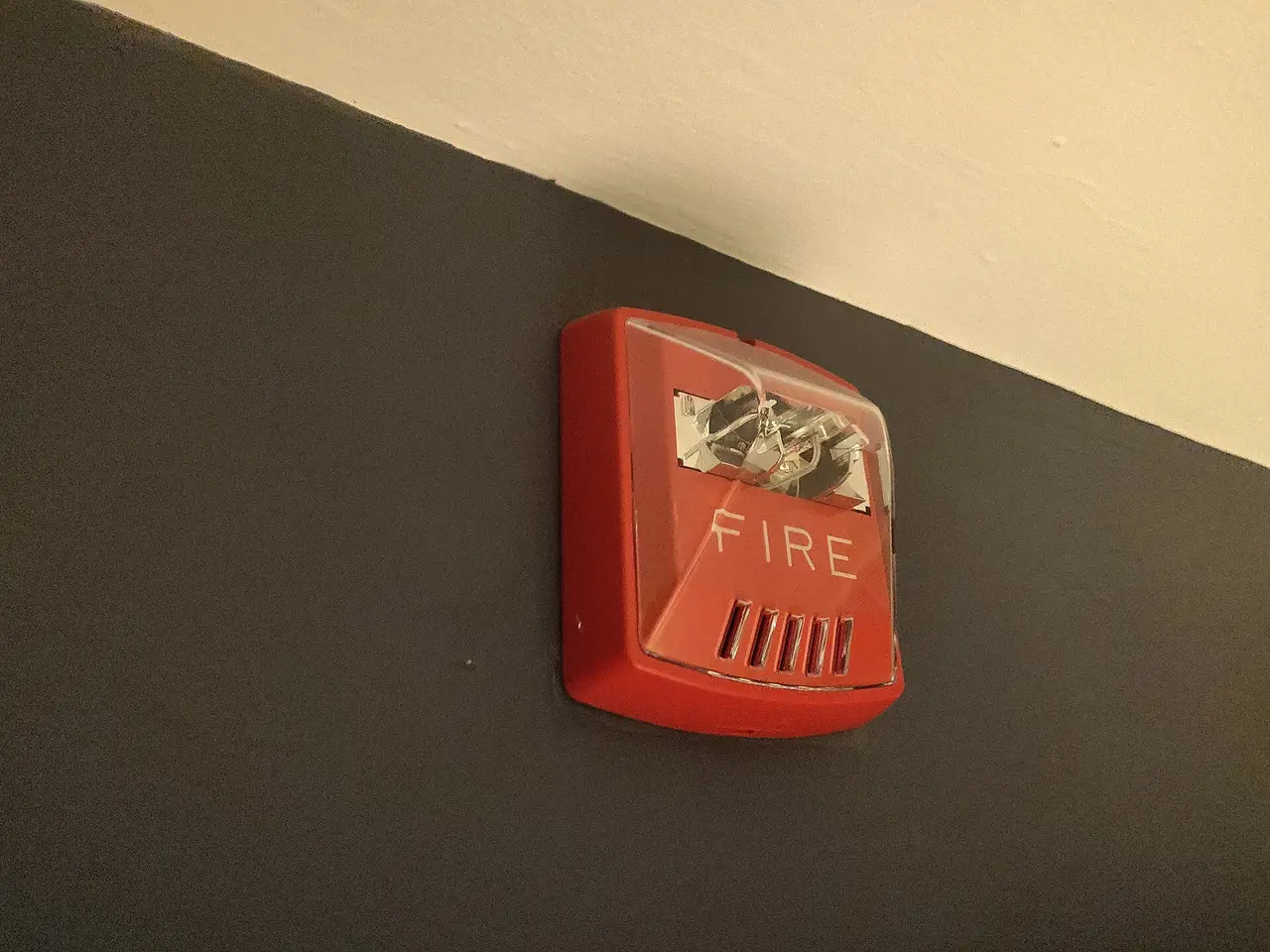

What Gets Tested After the New Panel Goes In
NFPA 72 calls this reacceptance testing. In a February 2021 NFPA Journal column, NFPA’s technical lead explains the rule for changes to an addressable panel’s site-specific software: every function affected by the change is fully tested, and an additional 10 percent of initiating devices not affected by the change, up to a maximum of 50, is tested too. A replacement panel has to be programmed for your building, so ask your contractor in writing which functions and devices the test will cover.
How much the inspector witnesses varies by city. Seattle’s fire department, for example, has its inspectors witness a 10% functional test of the system, including at least one device on each circuit and every new device, after the contractor pre-tests. Seattle also says a replacement generally does not force a system upgrade if the system still meets the code it was installed under. In New Jersey, ask the fire subcode official what will be witnessed before you book the cutover.
Paperwork to collect before the final payment
- The approved permit and the certificate of approval
- A revised record of completion for the system
- As-built drawings showing every device location
- A copy of the panel programming and the access codes, held by the owner, not only the installer
- The standby battery calculation and battery dates
- The updated monitoring account and call list
From Survey to Sign-Off: The Replacement Steps
- Survey. The contractor records the panel model, every device, the notification circuits, annunciators, elevator recall, door holders and how the panel reports to the monitoring center.
- Written scope and quote. It should name the new panel, list which devices are reused and which are replaced, the communicator, the permit, the hours the system will be out of service and the tests included.
- Permit. The licensed contractor applies with the license number on the application (N.J.A.C. 5:23-2.15).
- Notices. The fire department, the fire code official and the monitoring company are told before the system goes down (N.J.A.C. 5:70-3.2, Section 901.7).
- Cutover. Old panel out, new panel in, devices landed and programmed, with a fire watch if the fire code official requires one.
- Pre-test, then the inspection. The contractor tests first; the fire subcode official inspects and the certificate of approval follows.
- Records and monitoring. Paperwork handed over, the monitoring account confirmed and the panel added to the annual inspection schedule.
How long it takes depends on the building and the permit office. Security and Life Integrations says a small building usually takes a few days of on-site work after the permit is approved, and that plan review can add weeks in busy jurisdictions.
Panel Brands and How Security Dynamics Quotes a Replacement
Security Dynamics lists itself on this site as an authorized dealer for these fire alarm and security brands. Which panel fits your building depends on the devices you have now, so ask us during the survey.
Security Dynamics was founded in 1989 and is based in Hamilton Township, serving Mercer County, NJ and Bucks County, PA. It installs and services commercial fire alarm systems and lists panel replacement and upgrades among its New Jersey fire alarm services. This guide shows no Security Dynamics price; each building is quoted on its own.
NJ fire alarm license P00747.
Frequently Asked Questions
How much does it cost to replace a fire alarm panel?
Cost guides we checked in October 2026 put a small like-for-like panel swap at about $3,000 to $6,000 installed (Majors Fire & Security) or $3,500 to $9,000 for a 15 to 40 device building, including programming, testing and permit (Security and Life Integrations). A small conventional-to-addressable upgrade runs $8,000 to $15,000, and large addressable replacements $25,000 to $60,000 or more (Majors). These are typical market ranges from companies outside New Jersey, not Security Dynamics quotes.
How much is a new fire alarm panel?
For the panel alone, Majors Fire & Security lists $1,500 to $5,000 for a conventional panel and $3,000 to $15,000 or more for an addressable one. Firetron lists conventional panels from about $1,500 and addressable panels at $2,000 to $10,000, and Total Fire Protection lists a control panel at $2,500 to $6,000. Programming, labor, devices, the permit and testing are extra.
Do fire alarm panels need to be replaced?
Not because of age alone. A panel usually has to go when the manufacturer no longer supports it, replacement boards are unavailable, or the same troubles return at every annual test. New Jersey’s fire code says inspection reports list deficiencies based on the edition of the standard in effect when the system was installed, with non-required recommendations listed separately (N.J.A.C. 5:70-3.2, Section 901.6.3).
How often should a fire alarm panel be replaced?
There is no fixed replacement date in New Jersey’s fire code. Majors Fire & Security says most fire alarm panels have a useful life of 15 to 20 years, after which parts become scarce and support may end. Plan and budget for replacement in that window, and replace sooner if parts for your model are already gone.
How often should fire alarm panel batteries be replaced?
National Training Center’s summary of the 2019 edition of NFPA 72 says valve-regulated lead-acid panel batteries get a semiannual check of their date code, with load tests or replacement at least every three years unless the jurisdiction or panel manufacturer requires more. Total Fire Protection budgets $50 to $200 for backup battery replacement every 3 to 5 years. In New Jersey, ask your inspection company which NFPA 72 edition applies to your system.
Do I need a permit to replace a fire alarm panel in New Jersey?
Yes. New Jersey’s Uniform Construction Code lists repair or replacement of fire alarm components as ordinary maintenance, which needs no permit, but it excludes “the replacement of a fire alarm control panel” (N.J.A.C. 5:23-2.7). The Department of Community Affairs says fire protection projects outside that list need at least a minor work permit or a full permit. Your local construction office decides which.
Who is allowed to replace a fire alarm panel in New Jersey?
A contractor licensed under N.J.S.A. 45:5A-18 et seq., whose license number goes on the permit application, or a licensed electrical contractor (N.J.A.C. 5:23-2.15). Homeowners may work on alarms in their own homes. For a commercial or multifamily building, ask any bidder for the license number before you sign.
Is a fire watch required while the panel is being replaced?
When a required fire protection system is out of service, New Jersey’s fire code says the fire department and the fire code official must be notified immediately. Where the fire code official finds an imminent hazard, the building must be evacuated or an approved fire watch provided until the system is back in service (N.J.A.C. 5:70-3.2, Section 901.7).
Can I keep my existing smoke detectors and pull stations?
Often, if they are compatible with the new panel. Security and Life Integrations prices its small-building swaps with the existing devices reused, and Majors Fire & Security’s cheapest scenario is a conventional-to-conventional swap. Converting to addressable usually means replacing devices: Majors lists $20 to $60 per conventional device and $50 to $150 per addressable device.
Will a new panel fix the copper phone line problem?
Not by itself. The panel reports to the monitoring center through a communicator. In New Jersey, changing an existing digital communicator’s phone-line transmission means is minor work, and the contractor files Form F-391 with the fire subcode official within 24 hours confirming all required signals still work (N.J.A.C. 5:23-2.17A). Ask whether your current panel can take a cellular or IP communicator before you decide to replace it.
Battery figures: National Training Center and Total Fire Protection. The other answers are sourced in the sections above.
Get a Panel Replacement Quote
Tell us the panel make and model, roughly how many devices the building has, and what the last inspection report said. Security Dynamics can tell you whether a repair, a swap or an upgrade fits, and quote it.
